Asbestos-Free Sealing Sheet & Gasket
Asbestos-Free Sealing Sheet & Gasket offers excellent sealing performance, heat resistance, pressure resistance, and chemical compatibility for industrial pipelines, pumps, valves, boilers, heat exchangers, oil & gas, petrochemical, and power generation applications.
Asbestos-Free Sealing Sheet & Gasket
High Performance Asbestos-Free Sealing Sheet & Gasket Manufacturer & Supplier
Asbestos-Free Sealing Sheet & Gasket is a high-performance sealing material designed to replace traditional asbestos gasket sheets in industrial sealing applications. Manufactured from premium non-asbestos fibers, aramid fibers, mineral fibers, elastomer binders, and advanced fillers, it provides excellent sealing performance, high mechanical strength, and reliable resistance to heat, pressure, oil, steam, fuels, and industrial chemicals.
Compared with conventional asbestos gasket materials, asbestos-free sealing sheets offer improved environmental safety, enhanced durability, and compliance with modern industrial regulations. They are widely used in pipelines, pumps, valves, compressors, heat exchangers, boilers, flanges, and pressure vessels across power generation, petrochemical, marine, automotive, and manufacturing industries.
As a professional gasket material manufacturer, we supply asbestos-free gasket sheets in rolls, sheets, and precision die-cut gaskets with customized sizes, thicknesses, and material grades to meet diverse industrial sealing requirements.
Key Features
- Premium asbestos-free fiber material
- Excellent sealing performance
- High temperature resistance
- High pressure resistance
- Excellent oil resistance
- Good steam resistance
- Outstanding chemical resistance
- Excellent mechanical strength
- Low creep and relaxation
- Reliable long-term sealing
- Easy cutting and fabrication
- Available in sheet or die-cut gasket form
- OEM customization available
Product Benefits
Asbestos-Free Sealing Sheet & Gasket provides dependable sealing performance while eliminating the health and environmental concerns associated with asbestos-containing materials. The engineered fiber structure offers excellent resistance to compression, thermal cycling, and mechanical stress, reducing the risk of leakage in demanding industrial systems.
Its compatibility with oils, fuels, steam, water, and many chemicals makes it suitable for a wide range of static sealing applications. The material can also be easily converted into custom gaskets for different flange standards and equipment designs.
Typical Applications
Asbestos-Free Sealing Sheet & Gasket is widely used in:
- Industrial flange gaskets
- Pumps
- Valves
- Compressors
- Heat exchangers
- Steam pipelines
- Water pipelines
- Oil and gas equipment
- Petrochemical plants
- Power generation equipment
- Marine engines
- HVAC systems
- Boilers
- Pressure vessels
- Hydraulic systems
- Food processing equipment (selected grades)
- General industrial machinery
Technical Specifications
| Property | Specification |
|---|---|
| Material | Non-Asbestos Fiber Composite |
| Reinforcement | Aramid Fiber / Mineral Fiber |
| Binder | NBR or Other Elastomer |
| Color | Green / Blue / Black / Gray / Custom |
| Thickness | 0.5–6.0 mm |
| Sheet Size | Standard & Custom Available |
| Continuous Operating Temperature | Up to 250°C (Material Grade Dependent) |
| Maximum Temperature | Up to 400°C (Selected Grades) |
| Pressure Resistance | Up to 10 MPa (Depending on Grade) |
| Oil Resistance | Excellent |
| Steam Resistance | Excellent |
| Chemical Resistance | Good to Excellent |
Manufacturing Process
Our Asbestos-Free Sealing Sheets are manufactured using premium non-asbestos fibers, elastomer binders, and reinforcing materials through advanced calendaring and vulcanization processes. Strict manufacturing control ensures uniform density, stable thickness, excellent compressibility, and reliable sealing performance.
Every production batch undergoes comprehensive testing, including density, tensile strength, compressibility, recovery, oil resistance, thermal aging, leakage performance, and dimensional inspection before shipment.
Custom Manufacturing Services
We provide complete OEM and custom fabrication services, including:
- Custom sheet sizes
- Custom thicknesses
- Precision die cutting
- CNC cutting
- Waterjet cutting
- Custom flange gaskets
- Spiral wound gasket facing material
- Adhesive backing (optional)
- OEM packaging
- Private labeling
Why Choose Our Asbestos-Free Sealing Sheet & Gasket?
- Premium non-asbestos raw materials
- Excellent sealing reliability
- Outstanding heat and pressure resistance
- Good chemical compatibility
- Strict quality control
- Precision converting services
- OEM & ODM manufacturing
- Competitive factory pricing
- Fast delivery
- Worldwide export experience
- Professional engineering support
Frequently Asked Questions
What is an Asbestos-Free Sealing Sheet?
An Asbestos-Free Sealing Sheet is a modern gasket material manufactured without asbestos fibers. It is designed to provide reliable sealing performance while meeting current environmental and workplace safety standards.
What media is this material suitable for?
Depending on the material grade, it is suitable for sealing water, steam, oils, fuels, compressed air, and many industrial chemicals.
Can the sheet be converted into custom gaskets?

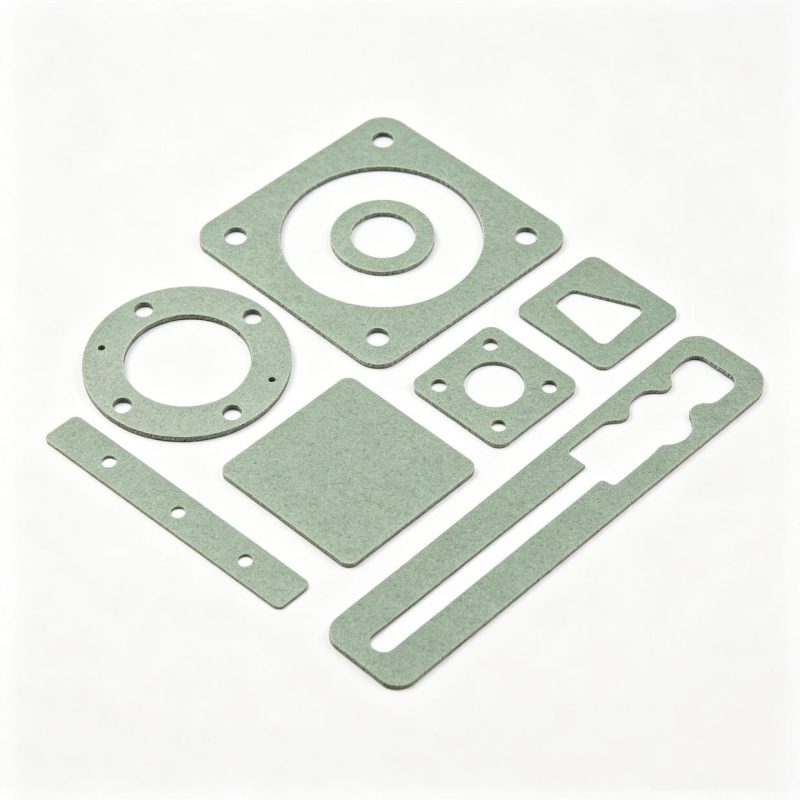

Yes. We provide precision die-cut, CNC-cut, and waterjet-cut gaskets based on customer drawings, international flange standards, or custom equipment requirements.
What temperature can the gasket withstand?
Standard grades typically operate continuously up to 250°C, while selected high-performance grades can withstand temperatures up to 400°C, depending on pressure and service conditions.
Which industries commonly use asbestos-free gasket materials?
They are widely used in power generation, petrochemical plants, oil & gas, marine engineering, automotive manufacturing, industrial machinery, food processing, HVAC systems, and general manufacturing.
