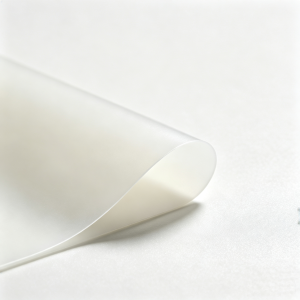

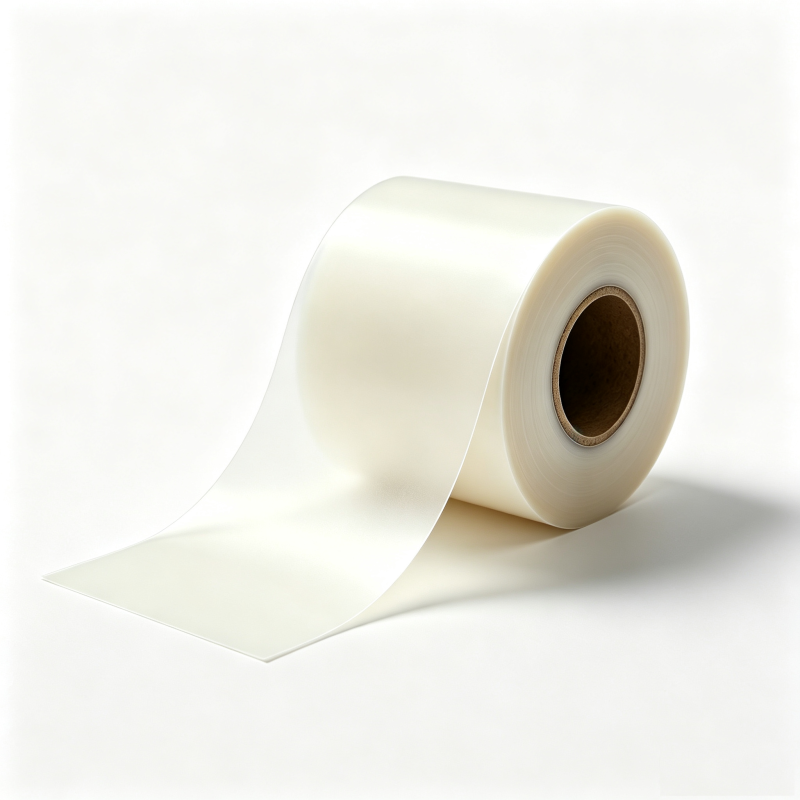

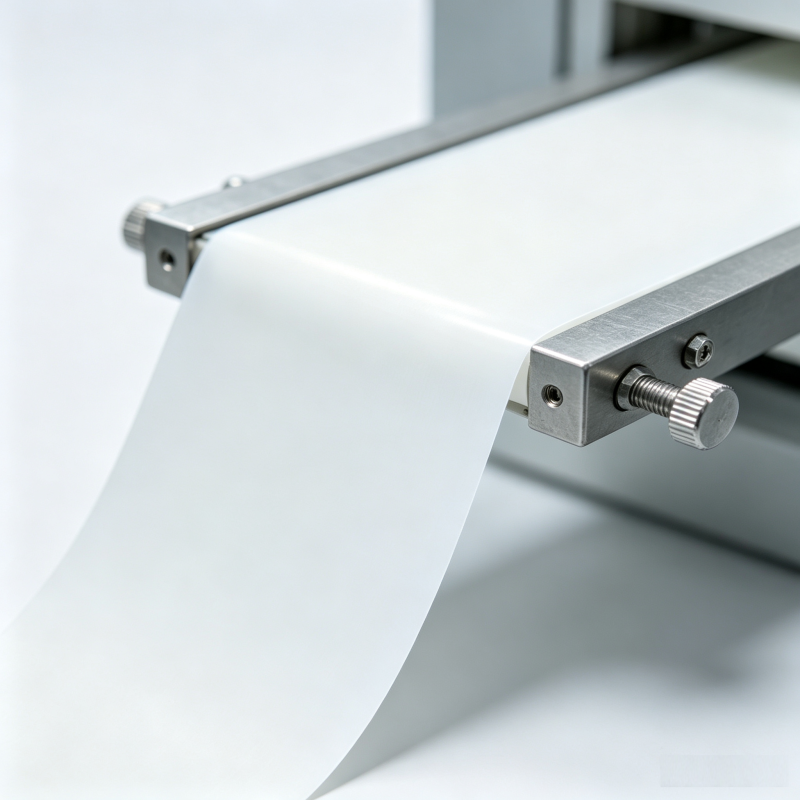

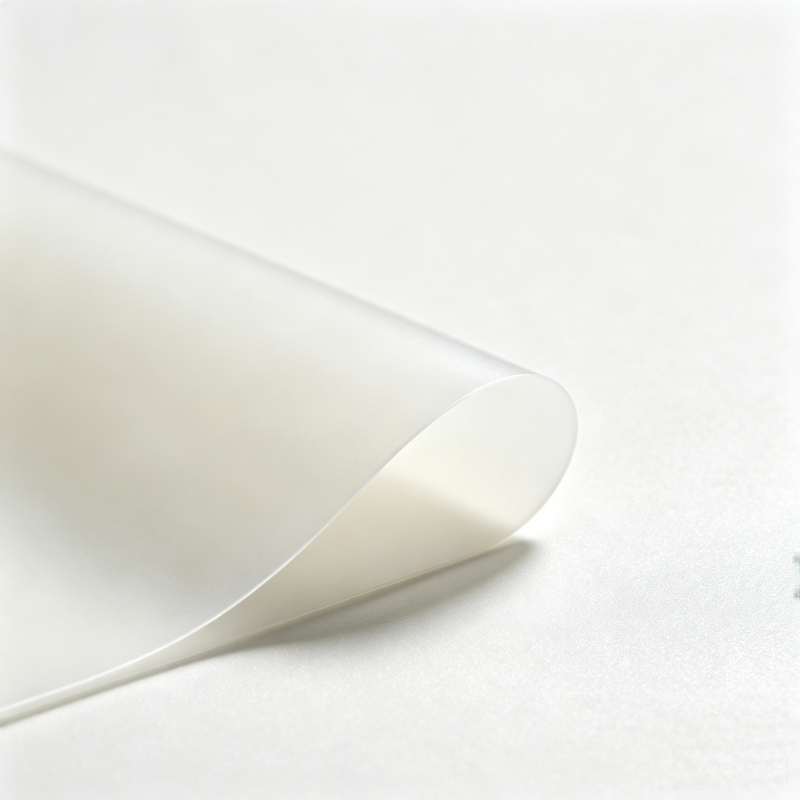

Skived Pure PTFE Film
Skived Pure PTFE Film is manufactured from 100% virgin PTFE resin using a precision skiving process. It provides exceptional chemical resistance, excellent electrical insulation, low friction, non-stick performance, and outstanding high-temperature stability from -200°C to +260°C. This versatile PTFE film is widely used in electrical insulation, sealing, chemical processing, aerospace, automotive, semiconductor, and food processing industries. Custom thicknesses, widths, and roll lengths are available to meet specific application requirements.
100% Virgin Skived Pure PTFE Film Manufacturer
Our Skived Pure PTFE Film is produced from high-quality virgin PTFE resin using advanced skiving technology to ensure excellent thickness consistency and surface quality.
Compared with molded PTFE sheets, skived PTFE film provides thinner gauges, better flexibility, and superior dimensional stability, making it ideal for precision industrial applications.
With excellent electrical insulation, high temperature resistance, and nearly universal chemical compatibility, it is widely used in electronics, PCB manufacturing, semiconductor processing, aerospace, medical equipment, and chemical processing industries.
Features & Benefits
✔ 100% Virgin PTFE Material
✔ Excellent Dielectric Strength
✔ Continuous Working Temperature: -190°C to +260°C
✔ Outstanding Chemical Resistance
✔ Extremely Low Coefficient of Friction
✔ Non-stick Surface
✔ Excellent UV & Weather Resistance
✔ Moisture Absorption Nearly Zero
✔ FDA Compliant Material Available
✔ Long Service Life
Technical Specifications
| Item | Specification |
|---|---|
| Material | 100% Virgin PTFE |
| Manufacturing Process | Precision Skived |
| Thickness | 0.03–5.0 mm |
| Width | Up to 1500 mm |
| Length | Customized |
| Density | 2.14–2.20 g/cm³ |
| Tensile Strength | ≥20 MPa |
| Elongation | ≥250% |
| Working Temperature | -190°C to +260°C |
| Dielectric Strength | Excellent |
| Color | White |
| Surface | Smooth / Matte |
Applications
Skived Pure PTFE Film is widely used in:
PCB Industry
- PCB Lamination
- Flexible PCB Manufacturing
- High-frequency PCB
- PCB Insulation
Semiconductor Industry
- Wafer Processing
- Vacuum Equipment
- Semiconductor Insulation
- High Purity Processing Equipment
Electrical Insulation
- Cable Wrapping
- Transformer Insulation
- Capacitor Insulation
- High Voltage Equipment
Industrial Applications
- Chemical Processing Equipment
- Gaskets
- Sealing Materials
- Sliding Bearings
- Aerospace Components
- Medical Equipment
Why Choose Our PTFE Film?
High Purity Raw Material
Manufactured from 100% virgin PTFE resin without recycled material.
Precision Thickness Control
Advanced skiving machines ensure consistent thickness and excellent flatness.
Custom Manufacturing
We provide:
- Custom thickness
- Custom width
- Custom roll length
- Die-cut parts
- CNC machined PTFE parts
Strict Quality Inspection
Every batch is inspected for:
- Thickness tolerance
- Surface finish
- Density
- Tensile strength
- Dielectric performance
OEM & Global Supply
We supply PTFE films for customers worldwide in:
- PCB Industry
- Semiconductor Industry
- Electronics Manufacturing
- Chemical Industry
- Aerospace
- Medical Equipment
Available Options
- Virgin PTFE Film

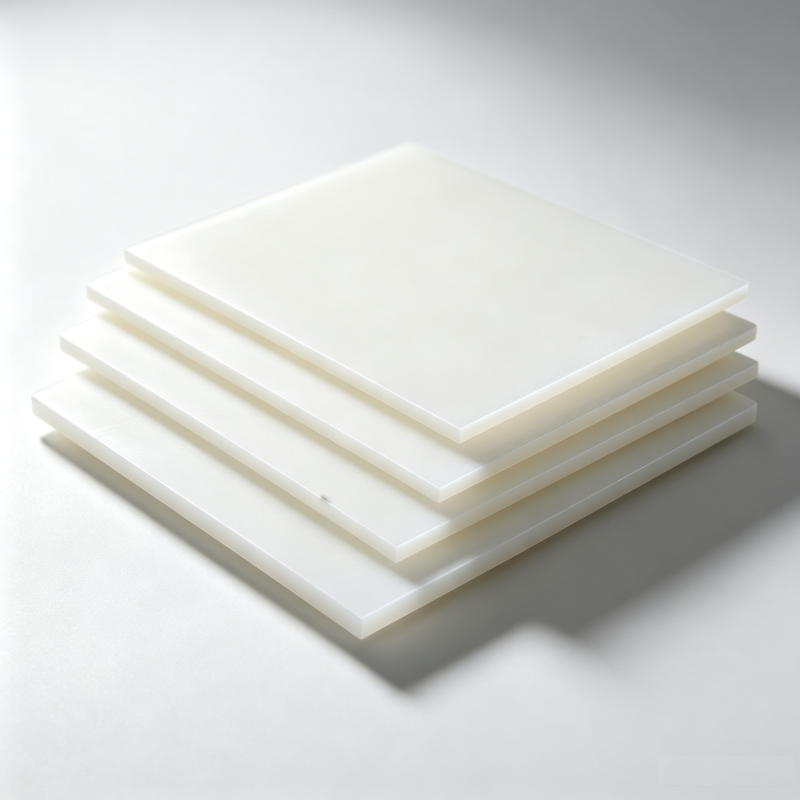

- Skived PTFE Sheet

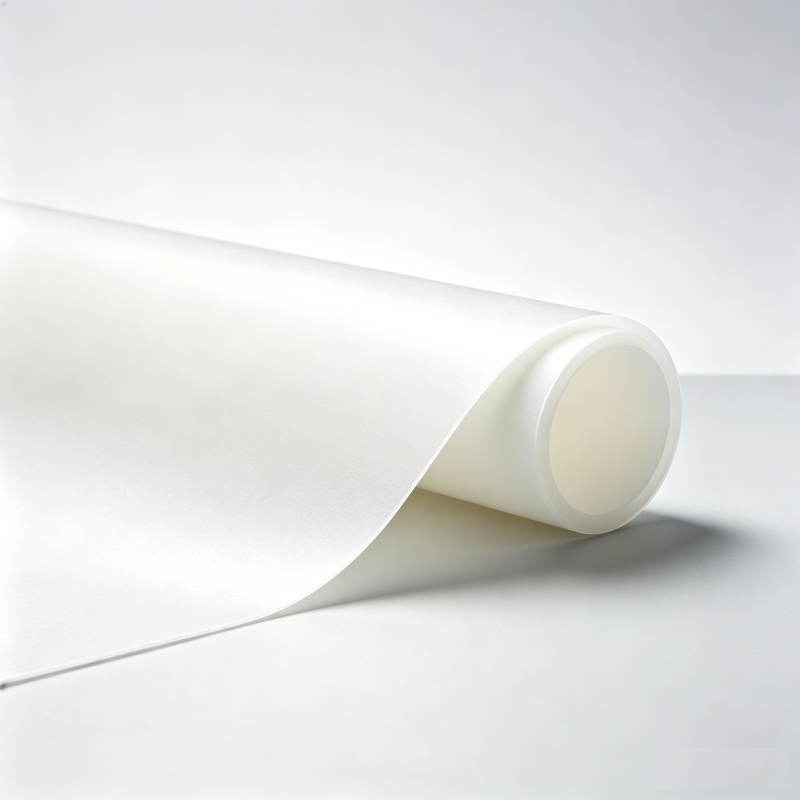

- PTFE Roll Film
- Adhesive PTFE Film
- Etched PTFE Film
- Colored PTFE Film
- Custom Die-cut PTFE Parts
Packaging
- Roll Packaging
- Sheet Packaging
- PE Protective Film
- Export Carton
- Wooden Case for Large Orders
FAQ
What is Skived PTFE Film?
Skived PTFE film is produced by skiving a cylindrical PTFE billet into continuous thin sheets. This process provides excellent thickness consistency and flexibility.
What thickness can you supply?
Standard thickness ranges from 0.03 mm to 5.0 mm, with custom thicknesses available upon request.
Can you provide custom sizes?
Yes. We manufacture custom widths, lengths, sheet sizes, and die-cut PTFE components according to customer drawings.
Is virgin PTFE available?
Yes. We use 100% virgin PTFE resin and can provide material certificates upon request.
Can you provide adhesive-backed PTFE film?
Yes. We offer adhesive-backed PTFE film and etched PTFE film for bonding applications.
