Mica Sheet and Die-Cut Mica Gaskets

Mica Sheet and Die-Cut Mica Gaskets for high-temperature electrical insulation and industrial equipment. Custom thicknesses, shapes and OEM parts.

Single Product

Mica Sheet and Die-Cut Mica Gaskets

High-Temperature Electrical Insulation Sheets and Custom Mica Components

Product Overview

HighTemp Material supplies mica sheets and custom die-cut mica gaskets for applications requiring high-temperature electrical insulation, thermal resistance, and dimensional customization.

Our product range includes rigid and flexible mica-based insulation materials, with muscovite and phlogopite grades available for evaluation according to the application.

Mica sheets can be converted into custom gaskets, washers, insulating spacers, heater insulation components, and other drawing-based parts.

As part of our High Temp Sealing Gasket & Packing Materials portfolio, these products support industrial equipment manufacturers seeking heat-resistant insulation and sealing components.

HighTemp Material works with qualified material suppliers and converting partners to support custom sheet sizes, die cutting, CNC processing, sample evaluation, and OEM supply.

Request a Quote | Submit Your Drawing | Request Material Guidance


Key Features and Benefits

1. High-Temperature Insulation

Mica-based materials are widely used in industrial applications involving elevated temperatures.

The allowable service temperature depends on the mica type, binder chemistry, reinforcement, material thickness, and exposure conditions.

For high-temperature applications, the selected composite sheet should be evaluated using grade-specific technical data.

2. Electrical Insulation Properties

Mica offers useful dielectric properties and can be used in electrical insulation barriers, heater assemblies, and insulating components.

Actual dielectric strength and electrical performance depend on the sheet construction, thickness, moisture exposure, and testing conditions.

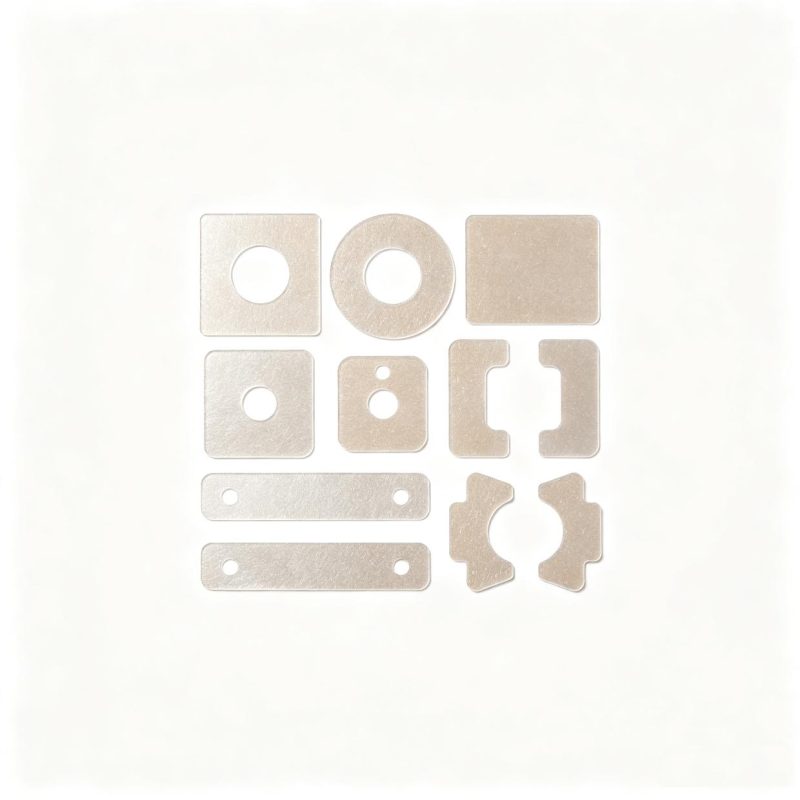

3. Custom Die-Cut Shapes

Mica sheets can be processed into flat insulation components with customer-specified geometry.

Typical parts include:

  • Circular mica washers

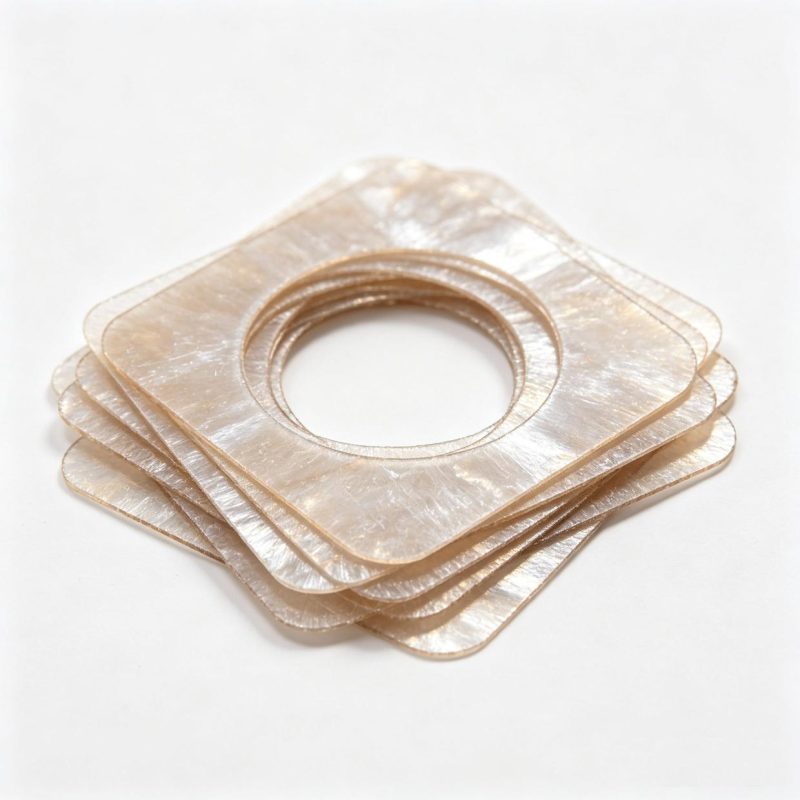

  • Annular mica gaskets
  • Rectangular insulation plates
  • Heater insulation components
  • Custom profiles with mounting holes
  • Electrical insulation spacers

4. Rigid and Flexible Material Options

Rigid mica sheets are often selected for flat insulating plates and structural insulation components.

Flexible mica sheets may be preferred for selected applications requiring bending or conformability.

Material selection should consider thickness, mechanical strength, bending requirements, and installation conditions.

5. Drawing-Based OEM Supply

We support drawing review and custom component supply according to specified dimensions, quantities, and application requirements.

For additional processing options, explore our Precision Converting Services.


Mica Material Types

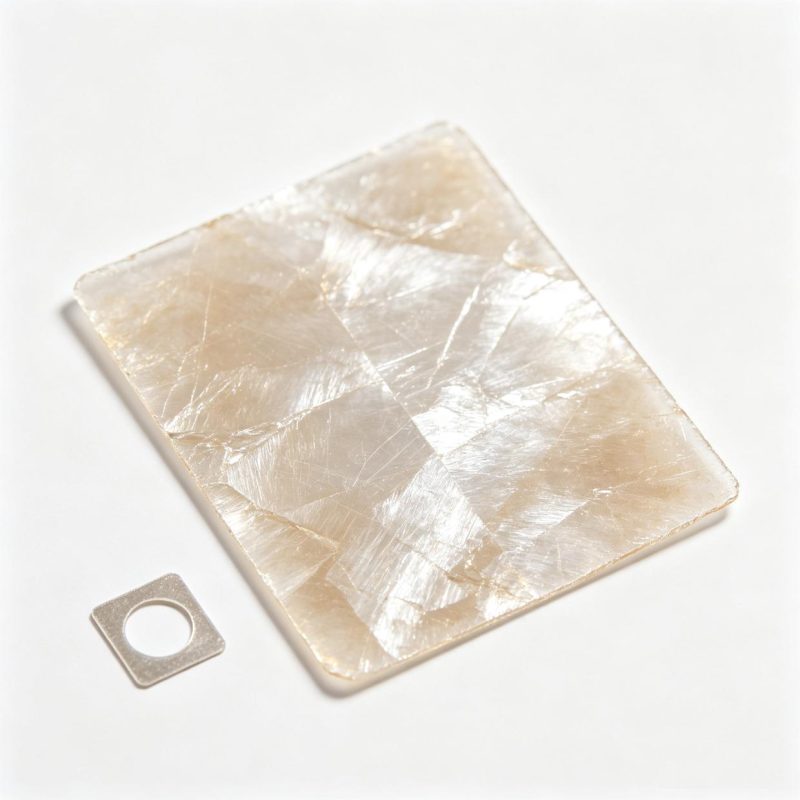

Muscovite Mica Sheet

Muscovite mica is commonly used in electrical insulation applications where dielectric properties and thermal stability are important.

It may be suitable for selected electrical equipment, heating elements, and insulation components.

Phlogopite Mica Sheet

Phlogopite mica is commonly considered for applications requiring higher-temperature resistance.

Its suitability depends on the finished sheet construction and binder system.

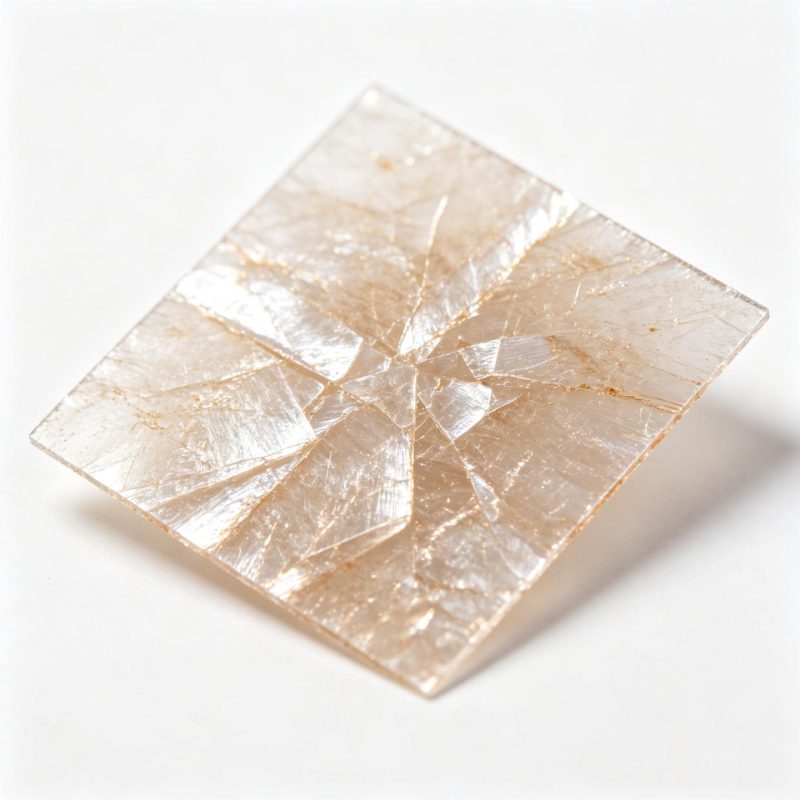

Rigid Mica Sheet

Rigid mica sheets are used for insulation plates, structural barriers, and custom-machined or die-cut components.

Flexible Mica Sheet

Flexible mica sheets may be selected for applications requiring controlled bending or installation around suitable surfaces.

Not all flexible grades are appropriate for the same temperatures or mechanical loads as rigid grades.


Preliminary Technical Specifications

Property Available Options / Confirmation Required
Material Mica-based insulation sheet
Mica Type Muscovite / Phlogopite, subject to availability
Construction Mica paper or mica-based composite with binder
Sheet Type Rigid / Flexible
Color Grade-dependent
Thickness According to selected grade
Sheet Size Standard or custom cut-to-size
Gasket Shape Circular, rectangular, annular, custom profile
Inner / Outer Diameter According to customer drawing
Operating Temperature Grade- and construction-dependent
Dielectric Strength Grade-specific test data required
Thermal Conductivity Grade-specific data required
Flexural Strength Grade-specific data required
Binder Content Subject to material grade
Dimensional Tolerance Confirmed according to geometry and process
Processing Methods Die cutting, CNC cutting, precision sheet cutting
Compliance Documentation Subject to supplier and grade availability

Technical Note: The table provides a preliminary specification framework. Actual thickness ranges, operating temperature ratings, mechanical properties, and dielectric values must be confirmed using the selected material grade and supplier TDS.


Typical Applications

Electrical Equipment Insulation

Mica sheets and washers can be used as insulation barriers or spacing components in selected electrical assemblies.

Applications may include industrial electrical equipment, terminal insulation, and components exposed to elevated temperatures.

Industrial Heater Insulation

Mica sheets are used in selected heater assemblies, heating elements, and high-temperature equipment.

For related thermal protection applications, explore our Fiberglass & Fireproof Insulation Materials.

Industrial Furnace Components

Selected mica grades may be used for burner insulation, electrical component protection, and other suitable furnace-related applications.

For a broader overview of thermal insulation materials, visit our Industrial Furnace Insulation Solutions.

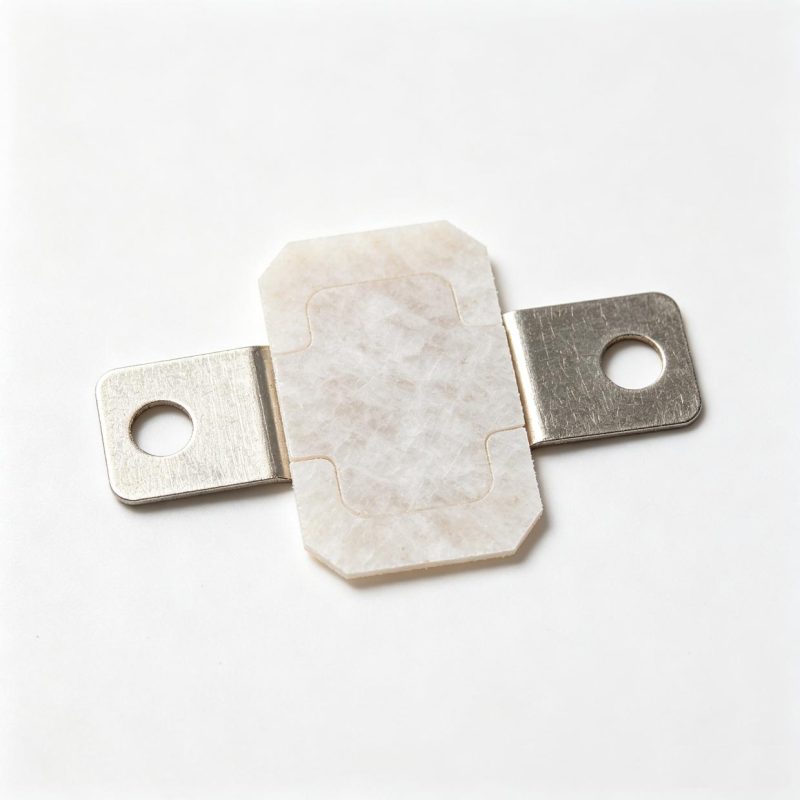

Battery and Electrical Insulation Components

Mica-based sheets may be evaluated for selected battery electrical insulation barriers, heat-resistant separators, and custom protective components.

Suitability depends on the required electrical insulation, thermal exposure, mechanical conditions, and relevant product-level safety testing.

Custom Industrial Gaskets

Die-cut mica components can be used in selected high-temperature assemblies where thermal resistance and electrical insulation are required.

Mica should not automatically be treated as a pressure-tight fluid sealing material. Gas or liquid sealing applications require evaluation of gasket construction, compressibility, flange loading, and operating conditions.


Mica Sheet vs PTFE and Fiberglass Insulation Materials

Different materials provide different combinations of electrical insulation, thermal performance, flexibility, and sealing characteristics.

Selection Factor Mica Sheet PTFE Fiberglass-Based Insulation
Main Strength High-temperature electrical insulation Chemical resistance and low friction Thermal protection and reinforcement
Temperature Capability Depends on mica composite grade Depends on PTFE grade and load Depends on glass type, coating, and construction
Electrical Insulation Grade-dependent Generally excellent for unfilled PTFE Construction-dependent
Flexibility Rigid or flexible grades Depends on form and thickness Depends on construction
Die-Cut Components Available Available Available for suitable grades
Typical Applications Heater insulation, barriers, gaskets Insulation washers, chemical-resistant gaskets Heat shielding, insulation, protection

For chemical-resistant sealing or lower-temperature electrical insulation components, our Custom Die-Cut PTFE Washers and Gaskets may be a suitable alternative.


How to Select the Right Mica Sheet or Gasket

Step 1 — Confirm the Operating Temperature

Provide the continuous operating temperature, peak temperature, exposure duration, and thermal cycling requirements.

Step 2 — Select the Material Construction

Identify whether the application requires muscovite or phlogopite mica, rigid or flexible sheet construction, and any special reinforcement.

Step 3 — Define Electrical Insulation Requirements

Specify working voltage, dielectric strength requirements, thickness constraints, and relevant test standards.

Step 4 — Confirm Mechanical Conditions

Provide information about clamping pressure, bending, vibration, mounting methods, and expected mechanical loads.

Step 5 — Review Gasket Geometry

Provide outer dimensions, inner diameter, hole positions, thickness, and dimensional tolerances.

Step 6 — Evaluate Cutting and Edge Quality

Mica composites can be brittle or prone to edge damage depending on the construction.

Cutting method, hole size, minimum web width, and edge-quality requirements should be reviewed before production.

Step 7 — Confirm Documentation

Identify any required TDS, inspection report, material declaration, or application-specific testing documentation.


Custom Die Cutting and CNC Processing

HighTemp Material supports custom mica component supply through qualified processing partners.

Depending on the material construction and part requirements, services may include:

  • Die cutting of suitable mica sheet grades
  • CNC cutting and machining
  • Custom holes and profiles
  • Cut-to-size insulation plates
  • Prototype and sample production
  • Batch packaging and labeling
  • Dimensional inspection according to agreed criteria

Achievable tolerances and edge quality depend on sheet thickness, binder composition, part geometry, and cutting method.


Common Design and Processing Considerations

Issue Possible Cause Recommended Review
Edge chipping Brittle material or unsuitable cutting process Evaluate material grade and cutting method
Cracking around holes Small edge distance or mechanical stress Review hole diameter and geometry
Dimensional variation Sheet thickness and processing effects Define critical tolerances
Reduced insulation performance Moisture, contamination, or unsuitable grade Review environment and dielectric requirements
Deformation at high temperature Binder degradation or mechanical loading Verify finished-sheet temperature rating
Installation breakage Excessive bending or clamping stress Consider flexible grades or revised design

Frequently Asked Questions

What is the difference between muscovite and phlogopite mica sheets?

Muscovite mica is widely used for electrical insulation, while phlogopite mica is often selected for higher-temperature applications. The performance of finished mica sheets depends on the binder and overall construction.

Can mica sheets be die-cut into custom gaskets?

Yes. Suitable mica sheet grades can be processed into custom gaskets, washers, insulation plates, and other shapes. The cutting method depends on thickness, geometry, and edge-quality requirements.

What is the maximum operating temperature of mica sheet?

There is no single temperature rating for all mica sheets. Maximum service temperature depends on the mica type, binder system, reinforcement, mechanical load, and exposure duration.

Can mica gaskets be used for electrical insulation?

Yes. Mica-based gaskets and washers can provide electrical insulation in suitable assemblies. Dielectric performance must be verified for the selected grade and thickness.

Are mica gaskets suitable for pressure sealing?

Not necessarily. Standard mica insulation sheets are not automatically suitable for pressure-tight fluid sealing. Specialized gasket constructions may be required.

Can you supply custom sizes and thicknesses?

Custom sizes, thicknesses, and shapes can be evaluated according to available mica sheet grades and processing capabilities.

Can you provide samples before production?

Sample availability depends on material grade, thickness, dimensions, and processing requirements.

What information is needed for a quotation?

Please provide the material type, operating temperature, sheet thickness, dimensions, drawings, tolerance requirements, application details, and estimated quantity.


Request Mica Sheet and Custom Gasket Quotations

Looking for mica insulation sheets or custom die-cut mica gaskets for electrical equipment, industrial heaters, or high-temperature applications?

HighTemp Material supports material selection, custom processing, and OEM supply according to customer requirements.

Send us your drawing, operating conditions, and estimated quantity for a preliminary technical review and quotation.
