Advanced manufacturing processes increasingly operate under demanding combinations of heat, electrical stress, mechanical pressure, chemicals and continuous production cycles.
From semiconductor processing and PCB lamination to lithium battery assembly, industrial furnaces and aerospace electronics, ordinary materials may soften, deform, lose insulation performance or degrade when exposed to elevated temperatures.
High temperature materials are designed to maintain their essential properties under these challenging conditions. Selecting the right material can help manufacturers reduce equipment downtime, prevent insulation failure, improve product consistency and extend component service life.

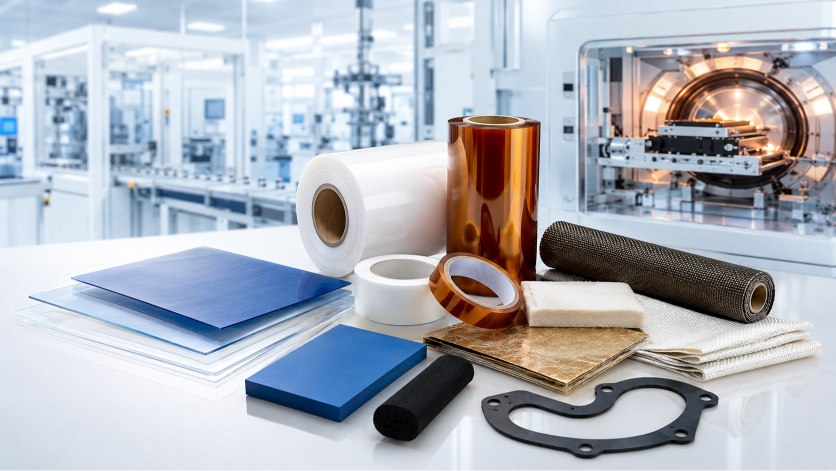

This article introduces seven major groups of high temperature materials, explains their functions and provides a practical guide for selecting suitable films, tapes, gaskets, insulation pads and fireproof components.
Why High Temperature Materials Matter
Heat can affect industrial materials in several ways. A polymer film may shrink, an adhesive may lose bonding strength, a gasket may experience excessive compression set, or an electrical insulator may suffer dielectric breakdown.
These changes can lead to:
- Unstable manufacturing processes
- Electrical short circuits
- Material contamination
- Seal leakage
- Dimensional changes
- Uneven pressure distribution
- Surface defects
- Reduced component life
- Increased maintenance costs
- Unexpected production downtime
Reliable high temperature materials help prevent these problems by maintaining the required thermal, electrical, chemical and mechanical properties throughout the production cycle.
However, temperature resistance alone is not enough. Engineers must also consider dielectric strength, thermal conductivity, chemical compatibility, mechanical load, flame resistance and processing requirements.
1. PTFE and Fluoropolymer Materials
PTFE is one of the most widely used high temperature fluoropolymers. It is valued for its chemical resistance, electrical insulation, low coefficient of friction and non-stick surface.
Typical PTFE and fluoropolymer products include:
- Skived pure PTFE film
- High-temperature PTFE adhesive tape
- Fiberglass-reinforced PTFE coated cloth
- ePTFE microporous breathable film
- FEP high-temperature film
- FEP laminated PI film
- Custom die-cut PTFE washers and gaskets
Standard PTFE materials are commonly used continuously at temperatures up to approximately 260°C, depending on the grade, thickness, mechanical load and application environment.
Advantages of PTFE
PTFE provides:
- Excellent chemical resistance
- Very low friction
- Non-stick surface performance
- Low moisture absorption
- Good electrical insulation
- Resistance to weathering and ultraviolet exposure
- Stable performance across a wide temperature range
Typical Applications
PTFE products are commonly used in:
- Heat-sealing machinery
- Chemical processing equipment
- Semiconductor manufacturing
- Industrial release surfaces
- Electrical insulation
- High-temperature conveyor systems
- Pipe and flange sealing
- Custom washers and sliding components
Fiberglass-reinforced PTFE coated cloth is especially useful when both release performance and improved dimensional stability are required.
FEP film provides heat sealability, transparency, electrical insulation and chemical resistance. It can also be laminated with PI film to create a composite material combining different surface and structural properties.
2. Polyimide Films and Tapes
Polyimide, commonly abbreviated as PI, is a high-performance polymer known for its thermal stability, dielectric strength and mechanical strength.
PI film is typically available in an amber transparent form, although black matte, anti-static and coated grades are also available.
Common PI products include:
- Plain PI base film
- Black matte PI masking film
- Anti-static ESD PI film
- FEP composite laminated PI film
- High-temperature PI tape
- Custom die-cut PI insulation pads
Depending on the grade and construction, PI materials are commonly used continuously at temperatures up to approximately 260°C. Some grades can tolerate higher temperatures for short periods.
Advantages of PI Materials
PI offers:
- High dielectric strength
- Good dimensional stability
- High tensile strength
- Excellent flexibility at low thickness
- Resistance to short-term thermal exposure
- Compatibility with precision die cutting
- Good coating and adhesive compatibility
Typical Applications
PI films and tapes are widely used in:
- PCB and FPC manufacturing
- Reflow soldering
- High-temperature masking
- Lithium battery insulation
- Semiconductor equipment
- Motor and transformer insulation
- Aerospace electronics
- Electronic component protection
PI tape with silicone adhesive is frequently used to protect terminals, contacts and sensitive surfaces during soldering, powder coating and other high-temperature processes.
Custom die-cut PI insulation pads are suitable for applications requiring thin, strong and precisely shaped electrical barriers.
3. High-Temperature PET, PPS and PEN Films
PET, PPS and PEN films provide different balances of thermal resistance, dimensional stability, electrical insulation and cost.
High-Temperature PET Film
PET film is widely used for electrical insulation, component separation, release applications and protective layers.
Available grades may include:
- Flame-retardant UL94 V-0 PET insulation film
- SMT reflow high-temperature PET masking film
- PCB and FPC lamination PET release film
- Black matte PET insulation film
- Clear high-temperature PET electrical isolation film
PET is generally more economical than PI or fluoropolymer films. However, its temperature capability is more limited, so the exact operating conditions must be reviewed carefully.
PPS Film
PPS film provides high temperature resistance, chemical stability, flame resistance and dimensional stability.
Typical products include:
- PPS thermal insulation film
- Flame-retardant PPS film for inverters
- PPS insulation film for automotive electronics
- High-rigidity PPS isolation film for battery modules
PPS is suitable for applications requiring stronger thermal and chemical performance than standard PET.
PEN Film
PEN offers better thermal and dimensional performance than standard PET while maintaining good electrical insulation and mechanical strength.
Typical PEN film applications include:
- Lithium battery packaging
- Solar photovoltaic modules
- Power electronics
- High-temperature labels
- Electrical insulation
- Long-term outdoor applications
How to Choose Between PET, PPS and PEN
Choose PET for cost-effective electrical insulation under moderate operating conditions.
Choose PPS when higher heat resistance, chemical stability or flame-retardant performance is required.
Choose PEN when the application requires a balance of thermal stability, mechanical strength, dimensional control and outdoor durability.
4. Silicone Rubber and Silicone Foam
Silicone materials remain flexible across a wide temperature range and provide useful sealing, cushioning and electrical insulation performance.
Common products include:
- Solid silicone rubber sheets
- Silicone-coated fiberglass cloth
- Closed-cell silicone foam pads
- Thermally conductive silicone sheets
- Silicone press cushions
- Custom die-cut silicone components
Advantages of Silicone Materials
Silicone materials can provide:
- High and low temperature flexibility
- Good electrical insulation
- Compression and recovery
- Vibration absorption
- Weather and ozone resistance
- Sealing against moisture and dust
- Thermal interface performance
- Custom hardness and thickness options
Typical Applications
Silicone rubber and foam are widely used in:
- Lithium battery packs
- Electronic enclosures
- PCB lamination equipment
- Industrial sealing
- Automotive electronics
- LED lighting
- Power supplies
- Thermal management systems
Closed-cell silicone foam can compensate for component tolerances, absorb vibration and distribute pressure. Thermally conductive silicone sheets fill air gaps between heat-generating components and cooling structures.
PCB lamination silicone press cushions help distribute pressure and temperature during hot pressing. Stable cushion performance can support more uniform lamination quality.
The correct silicone material should be selected according to hardness, compression force, compression set, thermal conductivity and required operating temperature.
5. FKM and High-Temperature Sealing Materials
Industrial equipment often requires sealing materials that can resist heat, oils, fuels, chemicals and pressure.
FKM fluorine rubber is commonly selected for demanding sealing environments because it combines heat resistance with strong chemical and oil resistance.
Typical products include:
- FKM fluorine rubber gaskets
- Asbestos-free sealing sheets
- Custom die-cut sealing gaskets
- Fiberglass or silicone fiber ropes
- Ceramic fiber packing ropes
- Mica gaskets
Depending on the compound, FKM products may be designed for operating temperatures around 220°C to 300°C. The exact temperature limit depends on formulation, exposure time, chemical environment and mechanical stress.
Typical Applications
High-temperature sealing materials are used in:
- Chemical processing equipment
- Pumps and valves
- Industrial ovens
- Engines and exhaust systems
- Oil and gas equipment
- Flanges and pipelines
- Furnaces and boilers
- High-temperature doors and access panels
Gasket performance depends on more than the base material. Thickness, hardness, compression, flange condition and bolt load must also be considered.
6. Mica and Aerogel Thermal Barriers
Some applications require materials that reduce heat transfer or delay the propagation of extreme temperatures.
Mica sheets and aerogel insulation pads provide two different approaches to thermal protection.
Mica Materials
Mica combines high-temperature resistance with electrical insulation and flame resistance.
Mica products can be manufactured as:
- Rigid insulation sheets
- Flexible mica sheets
- Terminal barriers
- Battery module barriers
- Electrical insulation plates
- Custom die-cut mica gaskets
Mica is frequently used in lithium batteries, industrial heaters, electrical equipment and high-temperature appliances.
Aerogel Insulation Pads
Aerogel composites offer very low thermal conductivity at relatively low thickness. They are suitable for applications where installation space is limited but thermal isolation is important.
Aerogel insulation pads can help:
- Reduce heat transfer
- Protect adjacent components
- Delay thermal propagation
- Improve energy efficiency
- Provide compact thermal barriers
They are increasingly used in lithium battery packs, energy storage systems, industrial equipment and high-temperature pipelines.
Mica and aerogel should not automatically be treated as interchangeable. Mica is often selected for combined electrical and fire protection, while aerogel is usually chosen when low thermal conductivity is the primary requirement.
7. Fiberglass, Ceramic Fiber and Basalt Materials
For more severe heat and fire exposure, manufacturers may require inorganic fiber materials.
Common options include:
- High-silica fiberglass cloth
- Silicone-coated fiberglass cloth
- Ceramic fiber board
- Ceramic fiber paper
- Ceramic fiber cotton
- Rock wool insulation board
- Aluminum silicate insulation board
- Basalt fiber fireproof fabric
High-Silica Fiberglass Cloth
High-silica fiberglass cloth can be used in high-temperature environments such as welding protection, furnace insulation and fire curtains.
Depending on its composition and construction, it may be suitable for operating environments around 900°C or for short-term exposure to higher temperatures.
Ceramic Fiber Materials
Ceramic fiber board, paper and cotton provide low thermal conductivity and high-temperature insulation. They are widely used in furnaces, boilers, kilns and industrial heating equipment.
Basalt Fiber Fabric
Basalt fiber is manufactured from volcanic rock and offers good heat resistance, mechanical strength and fireproof performance.
It can be used in:
- Welding blankets
- Fire curtains
- Battery fire protection
- Industrial heat shields
- Pipeline insulation
- Shipbuilding
- Aerospace thermal protection
The appropriate fireproof material depends on continuous temperature, direct flame exposure, required flexibility, thickness and installation method.
High Temperature Material Comparison
| Material | Primary Advantages | Typical Applications |
|---|---|---|
| PTFE | Chemical resistance, low friction and non-stick properties | Seals, release surfaces, chemical equipment and sliding parts |
| FEP | Heat sealability, transparency and chemical resistance | Film lamination, electrical insulation and protective layers |
| PI | Dielectric strength and dimensional stability | PCB masking, electronics and precision insulation |
| PET | Cost-effective electrical insulation | Component separation, release film and protective insulation |
| PPS | Heat resistance, chemical stability and rigidity | Automotive electronics, inverters and battery modules |
| PEN | Dimensional stability and outdoor durability | Batteries, solar modules and power electronics |
| Silicone | Flexibility, sealing, cushioning and thermal management | Battery packs, electronics and lamination equipment |
| FKM | Heat, oil and chemical resistance | Gaskets, pumps, valves and industrial seals |
| Mica | Electrical insulation and fire resistance | Battery barriers, heaters and electrical equipment |
| Aerogel | Very low thermal conductivity | Battery thermal barriers and compact insulation |
| High-silica cloth | High-temperature and flame protection | Welding blankets, fire curtains and furnaces |
| Ceramic fiber | High-temperature thermal insulation | Kilns, furnaces, boilers and industrial heating |
These are general characteristics. Actual performance varies according to material grade, construction, thickness and operating conditions.
Key Applications in Advanced Manufacturing
Semiconductor Processing
Semiconductor equipment requires clean, stable and chemically resistant materials.
PTFE, FEP and anti-static PI films may be used for chemical resistance, electrical insulation, ESD control and component protection.
PCB and FPC Production
PI masking tape, PET release film, silicone press cushions and fluoropolymer release materials support soldering, lamination and circuit manufacturing.
Correct material selection helps reduce surface contamination, uneven pressure, adhesive residue and dimensional defects.
Lithium Battery Manufacturing
Battery systems use PI, PET, PPS, PEN, mica, aerogel and silicone materials for electrical insulation, thermal management, cushioning and thermal runaway protection.
A multi-layer material structure is often required because no single material can provide every safety function.
Automotive and Power Electronics
PPS film, PI film, silicone thermal pads and FKM seals are used in inverters, motors, sensors, battery modules and electronic control systems.
These components must withstand heat, vibration, electrical stress and long-term environmental exposure.
Industrial Furnaces and Heat Processing
Ceramic fiber, high-silica cloth, basalt fabric, mica and aerogel help reduce heat loss and protect equipment surrounding high-temperature processes.
Chemical and Petrochemical Equipment
PTFE and FKM are widely used for seals, gaskets and insulation components exposed to chemicals, oils and elevated temperatures.
How to Select the Right High Temperature Material
Selecting a material only by its maximum temperature rating can lead to performance problems. Engineers should evaluate the complete working environment.
1. Define the Temperature Conditions
Confirm:
- Continuous operating temperature
- Maximum short-term temperature
- Heating and cooling cycle
- Direct flame exposure
- Localized hot spots
- Thermal expansion requirements
2. Identify the Primary Function
Determine whether the material must provide:
- Electrical insulation
- Thermal insulation
- Heat transfer
- Sealing
- Cushioning
- Chemical protection
- Flame protection
- Release performance
- Low friction
A thermal interface material transfers heat, while a thermal barrier reduces heat transfer. Confusing these functions can produce the opposite of the desired result.
3. Review Mechanical Conditions
Consider pressure, compression, tension, vibration, abrasion and dimensional tolerance.
PTFE may provide chemical resistance and conformability, while PI or PPS may be more suitable when dimensional stability is required.
4. Check Chemical Compatibility
Provide information about oils, solvents, acids, alkalis, cleaning agents and process chemicals.
Chemical compatibility can change significantly at elevated temperatures.
5. Confirm Electrical Requirements
For electrical insulation materials, review:
- Dielectric strength
- Breakdown voltage
- Volume resistivity
- Surface resistivity
- Flame-retardant requirements
- Required insulation thickness
6. Evaluate Converting Requirements
Many industrial materials must be supplied as custom components rather than standard rolls or sheets.
Available converting options may include:
- Precision die cutting
- CNC cutting
- Slitting and rewinding
- Sheet cutting
- Adhesive lamination
- Multi-layer lamination
- Kiss cutting
- Hole and slot cutting
- Custom gasket fabrication
- Prototype sample production
Providing a drawing, sample or installation diagram helps the supplier recommend a more accurate material and production method.
How Custom Converting Improves Reliability
Even a high-performance material may fail if the finished component does not fit correctly.
Precision converting helps ensure:
- Consistent dimensions
- Accurate hole positioning
- Clean edges
- Stable adhesive coverage
- Faster installation
- Reduced manual cutting
- Less material waste
- Repeatable assembly quality
Custom converted parts can be supplied with adhesive backing, release liners, positioning tabs or multi-layer constructions to simplify production.
Before mass production, prototype samples should be evaluated under actual temperature, pressure, electrical and chemical conditions.
Frequently Asked Questions
What are high temperature materials?
High temperature materials are polymers, elastomers, composites, fabrics or inorganic insulation products designed to maintain their required properties at elevated temperatures.
Which polymer has the best high-temperature resistance?
There is no single best polymer for every application. PTFE offers excellent chemical and non-stick performance, while PI provides better thin-film strength and dimensional stability. PPS, FEP, PEN and silicone provide different combinations of heat resistance and functionality.
What is the best material for high-temperature electrical insulation?
PI, PTFE, PPS, mica and certain flame-retardant PET films are commonly used. The correct choice depends on voltage, temperature, thickness, chemical exposure and mechanical requirements.
Which material is suitable for PCB masking?
High-temperature PI tape is commonly used for PCB soldering, reflow and masking. The adhesive system must be selected according to temperature and residue requirements.
What materials can protect lithium batteries from heat?
Aerogel pads, mica sheets, ceramic fiber materials and other thermal barriers can help reduce heat transfer. PI, PPS and PET films provide electrical insulation, while silicone materials can provide cushioning and thermal management.
What is the difference between thermal insulation and thermal interface materials?
Thermal insulation materials reduce heat transfer. Thermal interface materials transfer heat from a component to a cooling plate or heat sink.
Can high temperature materials be custom die cut?
Yes. PTFE, PI, PET, PPS, PEN, silicone, FKM, mica, aerogel composites and many other materials can be converted into custom components according to drawings or samples.
How should a high temperature material be tested?
The material should be tested under conditions representing the actual application, including temperature, exposure time, pressure, chemicals, voltage, vibration and thermal cycling.
Conclusion
High temperature materials are essential to the reliability of advanced manufacturing.
PTFE and FEP provide chemical resistance and release performance. PI, PET, PPS and PEN films support electrical insulation and precision electronics. Silicone and FKM provide sealing, cushioning and thermal management. Mica, aerogel, fiberglass, ceramic fiber and basalt materials strengthen thermal and fire protection.
The best material is not necessarily the one with the highest temperature rating. It is the material that maintains the required electrical, thermal, chemical and mechanical performance in the complete application environment.
We supply high-temperature films, tapes, silicone materials, sealing products, thermal barriers, fireproof fabrics and precision die-cut components for advanced industrial applications.
Contact us with your operating temperature, material thickness, dimensions, drawings and performance requirements. Our team can help recommend a suitable material structure and provide custom samples for evaluation.
Recommended Internal Links
Add internal links from this article to the following product pages:
- Skived Pure PTFE Film
- FEP High Temperature Film
- High Temp PTFE Adhesive Tape
- High Temperature PI Kapton Tape
- Anti-static ESD PI Film
- Flame Retardant PPS Film
- PCB/FPC Lamination PET Release Film
- Closed Cell Silicone Foam Pad
- FKM Fluorine Rubber Gasket
- Mica Sheet & Die Cut Mica Gasket
- Aerogel Thermal Insulation Pad
- High Silica Fiberglass Cloth
- Ceramic Fiber Board, Paper and Cotton
- Basalt Fiber Fireproof Fabric
